860020380028 | Würth Elektronik eiSos

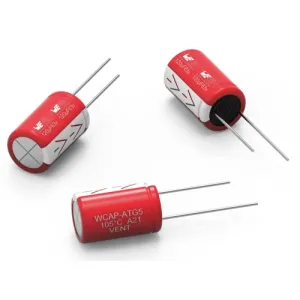

Electrolytic capacitor, 8200 µF, 16 V (DC), ±20 %, radial, pitch 7.5 mm, Ø 16 mm, 860020380028
Unit Price (€ / pc.)
2.6894 € *
Available: 50 pcs.
Available in 5 Days: 8,617 pcs.
Leadtime: 26 Weeks **
Total Price:
2.69 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6894 €
50 pcs.
2.2967 €
100 pcs.
1.9992 €
250 pcs.
1.7731 €
500 pcs.
1.5589 €
*incl. VAT plus shipping costs
**Subject to prior sale
Characteristics
- Capacitance range: 0.2 pF ‒ 350 F
- Capacity tolerance: ±20 %
- Dimensions (DxL) in mm: 5.0 x 11.0 to 22.0 x 31.0
- Lifespan: 2000 hours @ +105 °C
- Mounting style: THT Radial
- Operating temperature: -40°C to +105°C for UR < 400 V(DC), -25°C to +105°C for UR ≥ 400 V(DC)
- Recommended soldering: Wave soldering
- Product series for general-purpose use with a maximum operating temperature of +105°C
- Capacitance range: 0.1 µF to 18000 µF
- Mounting type: THT Radial
- Recommended soldering method: Wave soldering
Application:
- Filtering
- Smoothing
- Energy storage
- Coupling
- e.g. Switched-mode power supply, AC/DC converter, adapter, charger, digital camera
- Filtering
- Smoothing
- Energy storage
- Coupling
- e.g. Switched-mode power supply, AC/DC converter, adapter, charger, digital camera
Technical specifications
| Connection | solder connection | |
| Version | polar | |
| Design | radial | |
| diameter | 16 mm | |
| Capacity | 8200 µF | |
| Length | 35.5 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -40 °C | |
| Rated voltage (DC) | 16 V | |
| Grid | 7.5 mm | |
| Ripple current | 2.02 A | |
| Tolerance | ±20 % |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85322200 |
| MSL | MSL 1 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
