865080253011 | Würth Elektronik eiSos

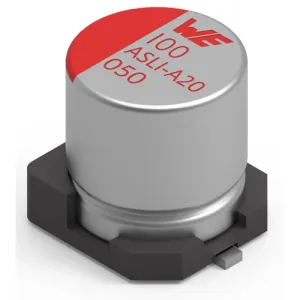

Electrolytic capacitor, 330 µF, 10 V (DC), ±20 %, SMD, Ø 8 mm, 865080253011
Unit Price (€ / pc.)
0.5748 € *
Available: 50 pcs.
Available in 5 Days: 2,866 pcs.
Leadtime: 26 Weeks **
Total Price:
0.57 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5748 €
50 pcs.
0.4915 €
100 pcs.
0.4272 €
250 pcs.
0.3796 €
500 pcs.
0.3320 €
*incl. VAT plus shipping costs
**Subject to prior sale
Characteristics
- Capacitance range: 0.2 pF ‒ 350 F
- Capacity tolerance: ±20 %
- Dimensions (DxL) in mm: 4.0 x 5.5 to 16.0 x 17.0
- Lifespan: 2000 hours @ +105 °C
- Mounting style: V-Chip SMT
- Operating temperature: -55°C to +105°C
- Recommended soldering: Reflow soldering
- Voltage range (UR): 6.3 - 100 V(DC)
- Product series with low impedance
- Capacitance range: 0.1 µF to 6800 µF
- Mounting type: V-Chip SMT
- Recommended soldering method: Reflow soldering
Application:
- Low impedance, especially for filtering applications
- Input and output capacitor for switched-mode power supply
- Filtering
- Smoothing
- e.g. DC/DC converter, AC/DC converter, satellite receiver, control panel
- Low impedance, especially for filtering applications
- Input and output capacitor for switched-mode power supply
- Filtering
- Smoothing
- e.g. DC/DC converter, AC/DC converter, satellite receiver, control panel
Technical specifications
| Anschluss | Lötanschluss | |
| Ausführung | Polar | |
| Bauform | SMD | |
| Durchmesser | 8 mm | |
| Kapazität | 330 µF | |
| Länge | 10.5 mm | |
| max. Temperatur | 105 °C | |
| min. Temperatur | -55 °C | |
| Nennspannung (DC) | 10 V | |
| Rippelstrom | 500 mA | |
| Toleranz | ±20 % |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85322200 |
| MSL | MSL 1 |
| Originalverpackung | Rolle mit 500 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
