74279221100 | Würth Elektronik eiSos

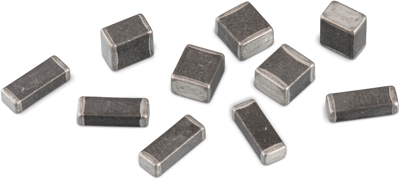

Ferrite Bead, SMD 1206, 10.5 A, 3 mΩ, 100 MHz, 10 Ω, ±25 %, 74279221100

Order No.: 85D1136
EAN: 4099889407051
MPN:
74279221100
Series: WE-MPSB
Würth Elektronik eiSos
74279221100 Würth Elektronik eiSos Ferrite beads
Image may differ
Unit Price (€ / pc.)
0.4796 € *
Available: 50 pcs.
Available in 5 Days: 10,000 pcs.
Leadtime: 10 Weeks **
Total Price:
0.48 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4796 €
50 pcs.
0.4522 €
100 pcs.
0.4355 €
250 pcs.
0.3963 €
500 pcs.
0.3618 €
*incl. VAT plus shipping costs
**Subject to prior sale

Characteristics

  • AEC - Q 200
  • High current-carrying capacity up to 10.5 A
  • Operating temperature: -55°C to +125°C
  • Specified peak current capability

Application:

  • Filter with high inrush current peaks
  • For motor interference suppression
  • EMI suppression of DC/DC converters and DC power supply
  • Broadband suppression
Technical specifications
Design SMD 1206
Width 1.6 mm
DC current 10.5 A
DC resistance 3 mΩ
Height 1.1 mm
Impedance 10 Ω
Length 3.2 mm
Measuring frequency 100 MHz
Tolerance ±25 %
Logistics
Country of origin TW
Customs tariff number 85045000
MSL MSL 1
Original Packaging Reel with 3,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
