74279228260 | Würth Elektronik eiSos

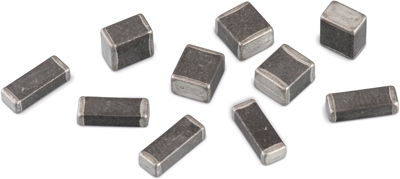

Ferrite Bead, SMD 0603, 6.5 A, 8 mΩ, 100 MHz, 26 Ω, ±25 %, 74279228260
Unit Price (€ / pc.)
0.3927 € *
Available: 50 pcs.
Available in 5 Days: 10,000 pcs.
Leadtime: 10 Weeks **
Total Price:
0.39 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3927 €
50 pcs.
0.3332 €
100 pcs.
0.2975 €
250 pcs.
0.2749 €
500 pcs.
0.2380 €
*incl. VAT plus shipping costs
**Subject to prior sale
Characteristics
- AEC - Q 200
- High current-carrying capacity up to 10.5 A
- Operating temperature: -55°C to +125°C
- Specified peak current capability
Application:
- Filter with high inrush current peaks
- For motor interference suppression
- EMI suppression of DC/DC converters and DC power supply
- Broadband suppression
Technical specifications
| Design | SMD 0603 | |
| Width | 0.8 mm | |
| DC current | 6.5 A | |
| DC resistance | 8 mΩ | |
| Height | 0.8 mm | |
| Impedance | 26 Ω | |
| Length | 1.6 mm | |
| Measuring frequency | 100 MHz | |
| Tolerance | ±25 % |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85045000 |
| MSL | MSL 1 |
| Original Packaging | Reel with 4,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
