74271132S | Würth Elektronik eiSos

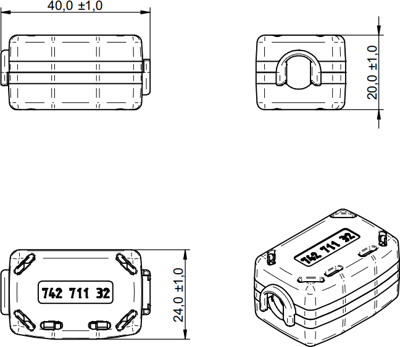

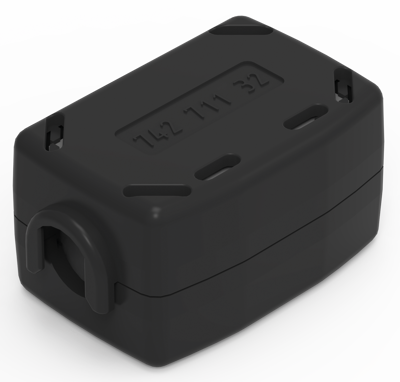

Folding ferrite, cable Ø 7-8.5 mm, (L x W x H) 40 x 24 x 20 mm, 74271132S
Unit Price (€ / pc.)
5.8667 € *
Available: 19 pcs.
Leadtime: 25 Weeks **
Total Price:
5.87 € *
Price list
Quantity
Price per unit*
1 pcs.
5.8667 €
10 pcs.
5.5930 €
50 pcs.
5.4502 €
180 pcs.
5.2598 €
360 pcs.
4.8433 €
*incl. VAT plus shipping costs
**Subject to prior sale
Characteristics
- Cable clamping protection
- Classification of the plastic housing: UL94 V-0
- Core material: NiZn/MnZn
- Internal lock with WE-STAR-KEY key technology prevents unauthorized removal from the cable
- Each packaging unit includes a key
- Operating temperature: -25°C to +105°C
- Pre-fixing cable system facilitates the assembly process
- With reliable flexible cable fixing, developed in-house
Application:
- EMC ferrite for the additional EMI suppression in the frequency area from 1 MHz to 1 GHz
- Fastening for round cables with diameter 3.5 mm to 25.0 mm or if winded more turns through the ferrite
- Reusable thanks to STAR-KEY technology, ideal for testing and measuring purposes in EMC laboratories
Technical specifications
| Breite | 24 mm | |
| Höhe | 20 mm | |
| Kabeldurchmesser | 7-8,5 mm | |
| Länge | 40 mm |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85480090 |
| Originalverpackung | Tray mit 38 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
