74271222S | Würth Elektronik eiSos

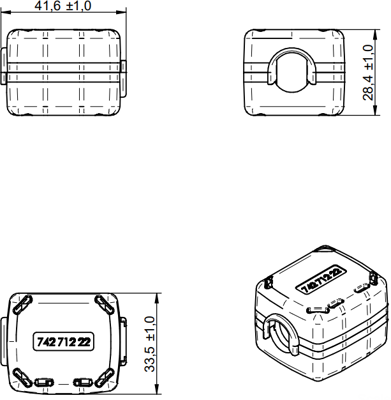

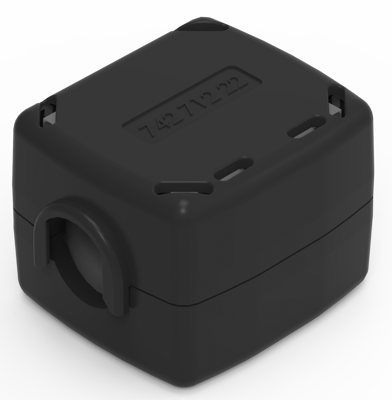

Folding ferrite, cable Ø 10.5-12.5 mm, (L x W x H) 41.6 x 33.5 x 28.4 mm, 74271222S
Unit Price (€ / pc.)
7.0924 € *
Available: 35 pcs.
Available in 5 Days: 15,190 pcs. - if ordered today
Total Price:
7.09 € *
Price list
Quantity
Price per unit*
1 pcs.
7.0924 €
10 pcs.
6.7830 €
50 pcs.
6.5926 €
140 pcs.
6.3546 €
280 pcs.
5.8667 €
*incl. VAT plus shipping costs
Subject to prior sale
Characteristics
- Cable clamping protection
- Classification of the plastic housing: UL94 V-0
- Core material: NiZn/MnZn
- Internal lock with WE-STAR-KEY key technology prevents unauthorized removal from the cable
- Each packaging unit includes a key
- Operating temperature: -25°C to +105°C
- Pre-fixing cable system facilitates the assembly process
- With reliable flexible cable fixing, developed in-house
Application:
- EMC ferrite for the additional EMI suppression in the frequency area from 1 MHz to 1 GHz
- Fastening for round cables with diameter 3.5 mm to 25.0 mm or if winded more turns through the ferrite
- Reusable thanks to STAR-KEY technology, ideal for testing and measuring purposes in EMC laboratories
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable diameter | 10.5-12.5 mm | |
| Length | 41.6 mm | |
| Width | 33.5 mm | |
| Height | 28.4 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Tray with 26 pieces |
| Customs tariff number | 85480090 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
