68611614422 | Würth Elektronik eiSos

Name: Connector, 16 pole, 1 row, pitch 1 mm, solder connection, tin/nickel plated, 68611614422
Brand: Würth Elektronik eiSos
SKU: 56F8657
Price: 1.81 EUR
Availability: InStock

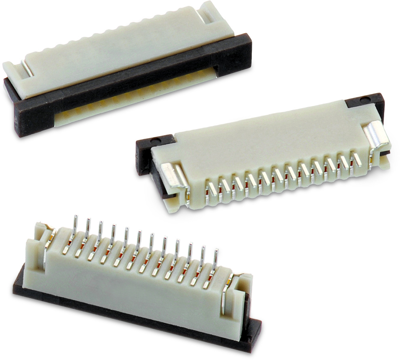

Connector, 16 pole, 1 row, pitch 1 mm, solder connection, tin/nickel plated, 68611614422

Order No.: 56F8657

EAN: 4099879820723

MPN:

68611614422

Series: WR-FPC 1 mm

Image may differ

Key Specification:

Polzahl 16-polig

Anzahl der Reihen 1

Rastermaß 1 mm

Anschluss Lötanschluss

Show 16 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

1.8088 € *

Available: 40 pcs.

Available in 5 Days: 10,000 pcs.

Leadtime: 10 Weeks **

Total Price:

1.81 € *

Price list

Quantity

Price per unit*

1 pcs.

1.8088 €

10 pcs.

1.6660 €

50 pcs.

1.5470 €

100 pcs.

1.3328 €

500 pcs.

1.2852 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Technical specifications

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	CN
Zolltarifnummer	85366930
MSL	MSL 1
Originalverpackung	Rolle mit 1.500 Stück

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes
