687120182122 | Würth Elektronik eiSos

Name: Connector, 20 pole, 1 row, pitch 0.5 mm, solder connection, tin/nickel plated, 687120182122
Brand: Würth Elektronik eiSos
SKU: 56F8916
Price: 2.36 EUR
Availability: InStock

Connector, 20 pole, 1 row, pitch 0.5 mm, solder connection, tin/nickel plated, 687120182122

Order No.: 56F8916

EAN: 4099879863843

MPN:

687120182122

Series: WR-FPC 0.5 mm

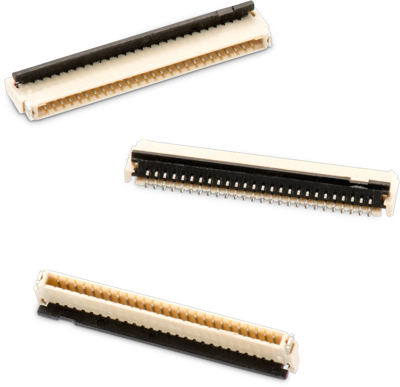

Image may differ

Key Specification:

Polzahl 20-polig

Anzahl der Reihen 1

Rastermaß 0.5 mm

Anschluss Lötanschluss

Show 18 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

2.3562 € *

Available: 50 pcs.

Available in 5 Days: 10,000 pcs.

Leadtime: 11 Weeks **

Total Price:

2.36 € *

Price list

Quantity

Price per unit*

1 pcs.

2.3562 €

100 pcs.

1.9635 €

500 pcs.

1.7374 €

1000 pcs.

1.4161 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Technical specifications

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	CN
Zolltarifnummer	85366930
MSL	MSL 1
Originalverpackung	Rolle mit 3.500 Stück

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes
