744231371 | Würth Elektronik eiSos

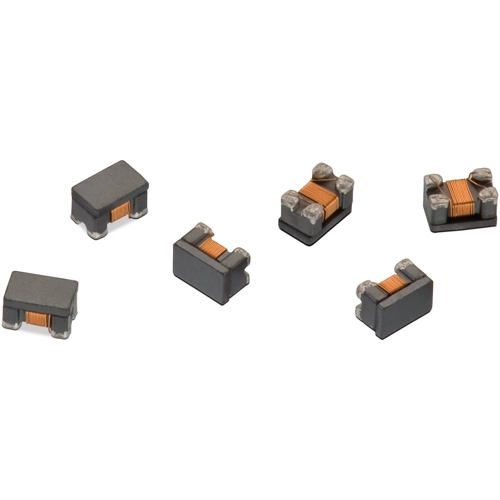

Common mode filter, SMD 0805, 0.478 µH, 0.28 A, 744231371
Unit Price (€ / pc.)
1.2495 € *
Available: 45 pcs.
Available in 5 Days: 10,000 pcs.
Leadtime: 12 Weeks **
Total Price:
1.25 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2495 €
10 pcs.
1.1900 €
50 pcs.
1.1067 €
100 pcs.
1.0472 €
500 pcs.
1.0115 €
*incl. VAT plus shipping costs
**Subject to prior sale
Characteristics
- Climatic category 40/105/21
- Clima category 40/125/21
- Current compensated data line filter
- Flammability corresponding to UL 94 V-0
- High common mode noise suppression at high frequencies
- Slim and miniature size
Application:
- USB 2.0
- IEEE 1394 (Firewire)
- LVDS
- High Speed Data Lines
- LAN
- Size 1812: recommended for CAN bus and CAN FD
Technical specifications
| Ausführung | Gleichtakt-Netzfilter | |
| Bauform | SMD 0805 | |
| Breite | 1.2 mm | |
| Gleichstrom | 0.28 A | |
| Gleichstromwiderstand | 450 mΩ | |
| Höhe | 1.2 mm | |
| Induktivität | 0.478 µH | |
| Länge | 2 mm | |
| Toleranz | ±25 % |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85045000 |
| MSL | MSL 1 |
| Originalverpackung | Rolle mit 2.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
