744355215 | Würth Elektronik eiSos

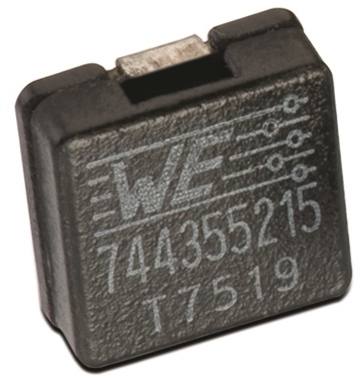

High current choke, SMD 1040, 0.15 µH, 25 A, 744355215
Unit Price (€ / pc.)
3.0821 € *
Available: 50 pcs.
Available in 5 Days: 480 pcs.
Leadtime: 20 Weeks **
Total Price:
3.08 € *
Price list
Quantity
Price per unit*
1 pcs.
3.0821 €
10 pcs.
2.9631 €
50 pcs.
2.8560 €
100 pcs.
2.7370 €
500 pcs.
2.5585 €
*incl. VAT plus shipping costs
**Subject to prior sale
Characteristics
- AEC - Q 200
- Flat wire
- Low stray field
- Magnetical shielded
- Operating temperature: -40°C to +125°C / +150°C / +155°C
- Recommended soldering: Reflow soldering
Application:
- Graphic cards
- Laptops
- Industrial computers
- Motherboards
- High current switching regulators
- DC/DC converter
- Polyphase-switching regulators
- Filter
Technical specifications
| Ausführung | Flachdraht-Hochstrominduktivität | |
| Bauform | SMD 1040 | |
| Breite | 10.2 mm | |
| Gleichstrom | 25 A | |
| Gleichstromwiderstand | 0.58 mΩ | |
| Höhe | 4 mm | |
| Induktivität | 0.15 µH | |
| Länge | 10.5 mm | |
| Messfrequenz | 275 MHz | |
| Toleranz | ±20 % |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85045000 |
| MSL | MSL 1 |
| Originalverpackung | Rolle mit 800 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
