7443732448010 | Würth Elektronik eiSos

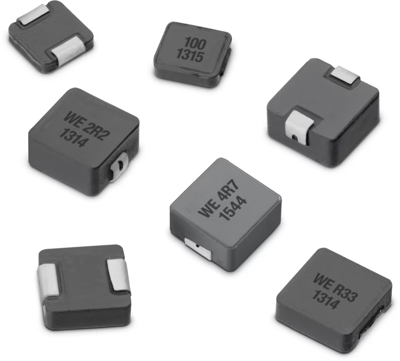

Power choke, SMD 4020HT, 1 µH, 6.2 A, 7443732448010
Unit Price (€ / pc.)
2.6418 € *
Available: 25 pcs.
Available in 5 Days: 7,103 pcs.
Leadtime: 14 Weeks **
Total Price:
2.64 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6418 €
10 pcs.
2.5704 €
50 pcs.
2.3645 €
500 pcs.
2.2491 €
2000 pcs.
2.0349 €
*incl. VAT plus shipping costs
**Subject to prior sale
SMT Power inductor, 7443732448010, Würth Elektronik eiSos
The 7443732448010 is a SMT Power inductor with DC/DC Converters for high current power supplies and Field Programmable Gate Arrays (FPGA).
Features
- Compact Design
- Magnetically shielded
- High current capability
- Handles high transient current spikes
- No acoustic noise and no leakage field
Applications
- Portable power like PDA, digital camera
- Mainboards/ graphic cards
- Battery powered devices
Technical specifications
| Version | power inductor | |
| Design | SMD 4020HT | |
| Width | 4.06 mm | |
| DC current | 6.2 A | |
| DC resistance | 27 mΩ | |
| Height | 1.8 mm | |
| Inductance | 1 µH | |
| Length | 4.45 mm | |
| Measuring frequency | 66 MHz | |
| Tolerance | ±20 % |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85045000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
