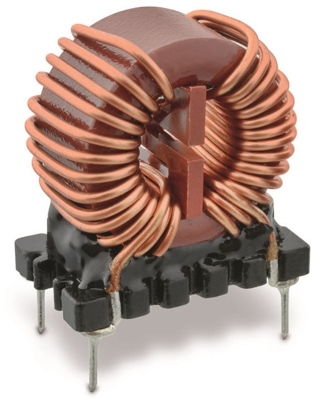

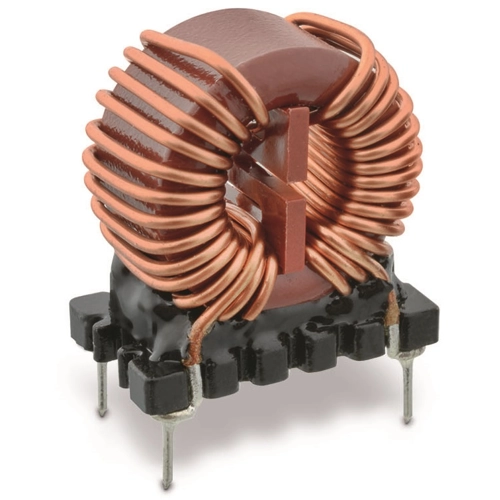

Common mode choke, vertical, 1 mH, 12 A, 7448251201
Unit Price (€ / pc.)
7.0091 € *
Available: 20 pcs.
Available in 5 Days: 5,972 pcs.
Leadtime: 18 Weeks **
Total Price:
7.01 € *
Price list
Quantity
Price per unit*
1 pcs.
7.0091 €
10 pcs.
6.8901 €
50 pcs.
5.4621 €
175 pcs.
5.2360 €
350 pcs.
4.7600 €
*incl. VAT plus shipping costs
**Subject to prior sale
Characteristics
- Broadband filtering due to low capacitance winding technique
- Certified according to IEC 60938-2
- Clima category 40/125/21
- Flammability corresponding to UL 94 V-0
- High suppression of asymmetrical interferences also at low frequency range
- Highest possible current in the smallest case size
- Operating temperature: -40°C to +125°C
- Very compact design
Application:
- Power electronics
- Power line in- and output filter
- Filtering of devices without any ground connection
- Suppression of radio interferences in motors
- Suppression of common mode noise
Technical specifications
| Ausführung | Gleichtakt-Netzdrossel | |
| Bauform | stehend | |
| Breite | 22 mm | |
| Gleichstrom | 12 A | |
| Gleichstromwiderstand | 9 mΩ | |
| Höhe | 35 mm | |
| Induktivität | 1 mH | |
| Länge | 31 mm | |
| Toleranz | ±30 % |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85045000 |
| MSL | MSL 1 |
| Originalverpackung | Tray mit 20 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
