2614011037000 | Würth Elektronik eiSos

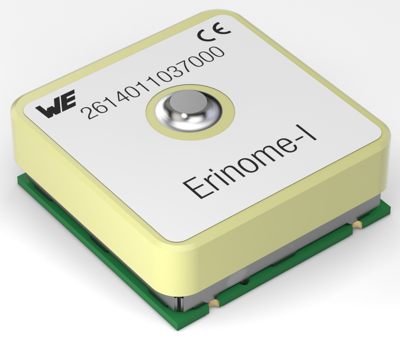

Erinome-I GPS-GLO-GAL-BDS GNSS module T&R, 2614011037000
Discontinued
Unit Price (€ / pc.)
55.3945 € *
Available: 25 pcs.
Leadtime: 40 Weeks **
Total Price:
55.39 € *
Price list
Quantity
Price per unit*
1 pcs.
55.3945 €
10 pcs.
51.9078 €
50 pcs.
49.8610 €
100 pcs.
44.7916 €
*incl. VAT plus shipping costs
**Subject to prior sale
Characteristics
- 1.5 m position accuracy (GPS-GLONASS)
- Based on Qualcomm SirfStar V 5e chipset
- CE, FCC, IC, TELEC certification
- Concurrent tracking of multiple constellations
- Fast acquisition time: 1 s (hot start), 28 s (cold start)
- Fully-featured GNSS module with integrated antenna
- High sensitivity
- Industrial temperature range: -40 °C up to +85 °C
- Integrated LNA, SAW filter, TCXO and RTC
- Low power consumption and longer battery life
- Standard NMEA + chipset-specific communication protocol
- I²C, UART and SPI digital communication interface
- Ultra small size: 18 x 18 x 6.4 mm
Application:
- Tracking and navigation devices
- Container localization
- Fleet management
- Location support for rescue
- Cartography
- Autonomous agricultural machines
- Geotagging for digital cameras
- Animal tracking
- Time reference for worldwide events/machine synchronization
Technical specifications
| Number of channels | 52 | |
| Version | GNSS module | |
| Frequency | 1560-1620 MHz | |
| IC controller/driver | UART, SPI, I²C | |
| Satellite system | GPS, GLONASS, Galileo, BeiDou |
Download
Logistics
| Country of origin | IL |
| Customs tariff number | 85269120 |
| MSL | MSL 4 |
| Original Packaging | Reel with 300 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
