810912006112 | Würth Elektronik eiSos

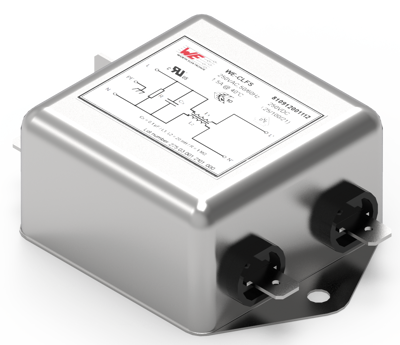

Line filter, 50 to 60 Hz, 6 A, 250 V (DC), 250 VAC, 10 mH, faston plug 6.3 mm, 810912006112
Unit Price (€ / pc.)
22.1816 € *
Available: 8 pcs.
Available in 5 Days: 34 pcs.
Leadtime: 24 Weeks **
Total Price:
22.18 € *
Price list
Quantity
Price per unit*
1 pcs.
22.1816 €
5 pcs.
21.1225 €
8 pcs.
20.0634 €
24 pcs.
17.9571 €
56 pcs.
15.8389 €
*incl. VAT plus shipping costs
**Subject to prior sale
Characteristics
- Broadband noise suppression in common and differential mode
- Certifications: cULus (UL 60939-3, CSA 22.2 No. 8), VDE (IEC/EN 60939-2)
- Climatic category: 25/100/21
- Extreme differential and common mode noise attenuation
- Fast chassis mounting
- Flammability corresponding to UL 94 V-0
- Improved differential mode noise attenuation
- Low Leakage Version
- Single-phase filter
- Suitable for industrial applications with strict requirements for leakage current or applications that have already reached maximum leakage current values
- UL 60939-3 replaces UL 1283 for Appliance Filters
- Very compact design
- Without Y-capacitors, for a leakage current of almost 0 A
Application:
- Industrial electronics
- Switched-mode power supplies
- Telecommunications
- Household goods
- DC applications
Technical specifications
| ohmscher Widerstand | 1000 kΩ | |
| Anschluss | Flachstecker 6,3 mm | |
| Anzahl der Phasen | 1 | |
| Ausführung | Netzfilter | |
| Bemessungsspannung | 250 VAC | |
| Induktivität pro Leitung | 10 mH | |
| integrierter Schalter | No | |
| Kapazität X|Y | X2 0,33 μF | |
| max. Frequenz | 60 Hz | |
| max. Temperatur | 100 °C | |
| min. Frequenz | 50 Hz | |
| min. Temperatur | -25 °C | |
| Mit Sicherung | No | |
| Nennspannung (DC) | 250 V | |
| Nennstrom | 6 A |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85480090 |
| MSL | MSL 1 |
| Originalverpackung | Tray mit 8 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
