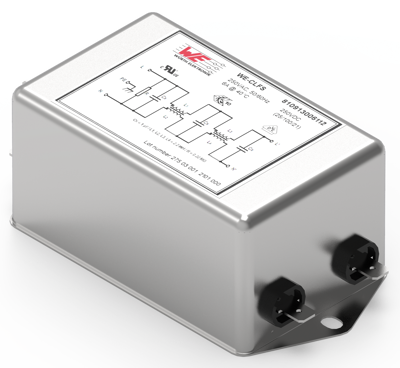

810913020 | Würth Elektronik eiSos

Characteristics

• Approvals: UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939
• Broadband noise suppression in common and differential mode
• Certifications: cULus (UL 60939-3, CSA 22.2 No. 8), VDE (IEC/EN 60939-2)
• Climatic category (IEC 60068-1): 25/100/21 (25°C/+100°C/21 days damp heat test)
• Climatic category: 25/100/21
• Extreme differential and common mode noise attenuation
• Fast chassis mounting
• Flammability corresponding to UL 94 V-0
• Improved differential mode noise attenuation
• Low Leakage Version
• Single-phase filter
• Suitable for industrial applications with strict requirements for leakage current or applications that have already reached maximum leakage current values
• UL 60939-3 replaces UL 1283 for Appliance Filters
• Very compact design
• Without Y-capacitors, for a leakage current of almost 0 A

Application:

• Industrial electronics
• Switched-mode power supplies
• Telecommunications
• Household goods
• DC applications
• Switch-mode power supplies
• Industrial electronics
• Telecommunications
• Data systems
• DC applications
