150040AS73220 | Würth Elektronik eiSos

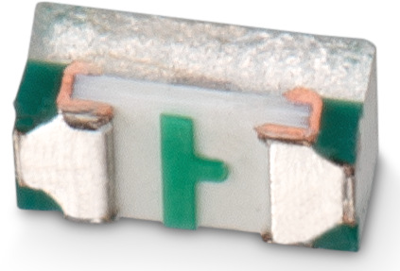

LED, SMD, 1005, amber, 609 nm, 0.045 to 0.08 cd, 120°, 150040AS73220
Unit Price (€ / pc.)
0.4891 € *
Available: 3,000 pcs.
Available in 5 Days: 10,000 pcs.
Leadtime: 14 Weeks **
Total Price:
0.49 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4891 €
10 pcs.
0.4355 €
50 pcs.
0.4308 €
250 pcs.
0.3844 €
500 pcs.
0.3451 €
*incl. VAT plus shipping costs
**Subject to prior sale
Characteristics
- Connection interface according to industrial standards
- Compatible to IR reflow soldering
- Miniaturized color effects
- Slim and miniature size
- Waterclear lens
Application:
- LED Front panel indicator
- Navigation systems
- Cellphone display
- Display for industrial control systems
- Traffic display
- LCD backlighting for LCD, push button, symbol and keypad
Technical specifications
| Abstrahlwinkel | 120 ° | |
| Breite | 0.5 mm | |
| Durchlassspannung | 2.4 V | |
| Durchlassstrom | 20 mA | |
| Farbe der LED | bernstein | |
| Gehäuse | 1005 | |
| Länge | 1 mm | |
| Lichtstärke min. | 0.045 cd | |
| Lichtstärke typ. | 0.08 cd | |
| Linse | klar | |
| max. Temperatur | 85 °C | |
| min. Temperatur | -40 °C | |
| Montage | SMD | |
| Wellenlänge | 609 nm |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85414100 |
| MSL | MSL 4 |
| Originalverpackung | Rolle mit 3.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
