150060VS86000 | Würth Elektronik eiSos

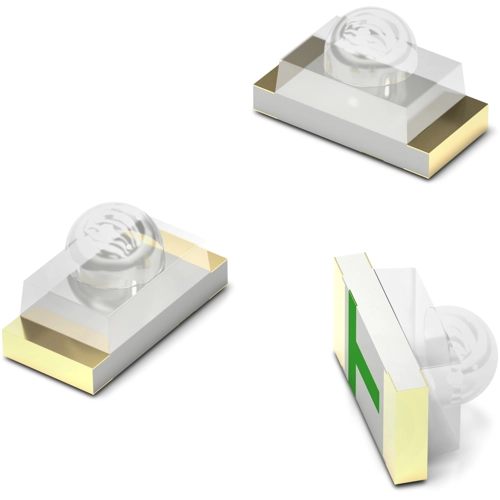

LED, SMD, 1608, Ø 0.7 mm, green, 575 nm, 0.18 to 0.3 cd, 60°, 150060VS86000
Unit Price (€ / pc.)
0.4082 € *
Available: 2,899 pcs.
Available in 5 Days: 10,000 pcs.
Leadtime: 14 Weeks **
Total Price:
0.41 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4082 €
10 pcs.
0.3618 €
50 pcs.
0.3154 €
250 pcs.
0.2832 €
500 pcs.
0.2535 €
*incl. VAT plus shipping costs
**Subject to prior sale
Characteristics
- Better solder ability
- Fast switching time
- Heat dissipation
- High reliability
- Low current requirement
- Low energy
- No UV/ IR radiation
- Smallest SMT LED package for exceptional brightness
- Top view LED
- Wide viewing angle
Application:
- Backlight for mobile and portable device keypads
- Indoor and outdoor message boards
- Flat backlight for LCDs, switches and symbols
- Display for industrial control systems and traffic
- Miniaturized color effects
- Pedestrian mark
- Optical indicators
- Tabular backlight: LCD, telephone key-press, power-switch, display board
- Indoor displays
- Signals
- Identifiers
- Backlight for automobile DVD
- LED General lighting
- Toys
Technical specifications
| Radiation angle | 60 ° | |
| Width | 0.8 mm | |
| On-State Voltage | 2.4 V | |
| Forward Current | 20 mA | |
| diameter | 0.7 mm | |
| Colour of the LED | green | |
| Enclosure | 1608 | |
| Length | 1.6 mm | |
| Light intensity min. | 0.18 cd | |
| Light intensity typ. | 0.3 cd | |
| Lens | clear | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Wavelength | 575 nm |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85414100 |
| MSL | MSL 4 |
| Original Packaging | Reel with 4,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
