150224AS73100 | Würth Elektronik eiSos

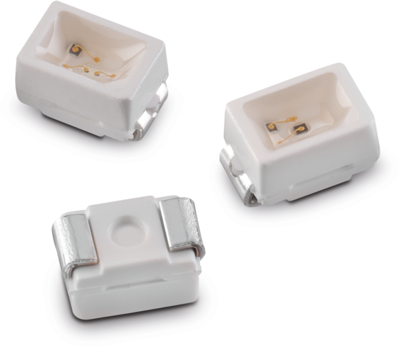

LED, SMD, 2214, amber, 605 nm, 0.1 to 0.21 cd, 120°, 150224AS73100

Order No.: 67S1159
EAN: 4099889282696
MPN:
150224AS73100
Series: WL-SMTW
Würth Elektronik eiSos
150224AS73100 Würth Elektronik eiSos LEDs
Image may differ
Unit Price (€ / pc.)
0.3487 € *
Available: 2,999 pcs.
Available in 5 Days: 10,000 pcs.
Leadtime: 8 Weeks **
Total Price:
0.35 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3487 €
50 pcs.
0.3106 €
100 pcs.
0.2523 €
500 pcs.
0.2297 €
2000 pcs.
0.2071 €
*incl. VAT plus shipping costs
**Subject to prior sale

Characteristics

  • Compact package outline
  • ESD Protection with a Zener diode
  • Fast switching time
  • Flexibility in design
  • High reliability
  • Low current requirement
  • Low energy
  • No UV/ IR radiation
  • PLCC 2 white package
  • Top view LED
  • Variety of lens-color

Application:

  • Signage and indirect illumination
  • Flat lamp
  • Indicator and backlight in telecommunication
  • Consumer application: dash-board, telephone or A/V equipments
  • Flat backlight for LCDs, switches and symbols
  • Optical indicators
  • Indoor and outdoor displays
  • Scanner
  • Backlight in LCD, cellular phones, switches, keys, displays
  • lluminated advertising, panel
  • Lighting device: indicator, general lighting
  • Camera flash, hand carrier flash
  • Coupling into light guides
  • Backlight in LCD, cellular phones, switches, keys, displays
  • lluminated advertising, panel
  • Lighting device: indicator, general lighting
  • Camera flash, hand carrier flash
  • Coupling into light guides
Technical specifications
Radiation angle 120 °
Width 1.4 mm
On-State Voltage 2.4 V
Forward Current 30 mA
Colour of the LED amber
Enclosure 2214
Length 2 mm
Light intensity min. 0.1 cd
Light intensity typ. 0.21 cd
Lens clear
max. operating temperature 85 °C
min. operating temperature -40 °C
Assembly SMD
Wavelength 605 nm
Logistics
Country of origin CN
Customs tariff number 85414100
MSL MSL 4
Original Packaging Reel with 3,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
