150224YS73100A | Würth Elektronik eiSos

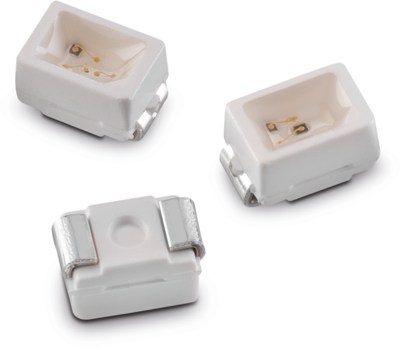

LED, SMD, 2214, yellow, 590 nm, 0.23 to 0.33 cd, 120°, 150224YS73100A
Unit Price (€ / pc.)
0.2154 € *
Available: 2,970 pcs.
Available in 5 Days: 1,799 pcs.
Leadtime: 8 Weeks **
Total Price:
0.22 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2154 €
10 pcs.
0.1999 €
100 pcs.
0.1916 €
500 pcs.
0.1833 €
1000 pcs.
0.1666 €
*incl. VAT plus shipping costs
**Subject to prior sale
Characteristics
- Compact package outline
- ESD Protection with a Zener diode
- Fast switching time
- Flexibility in design
- High reliability
- Low current requirement
- Low energy
- No UV/ IR radiation
- PLCC 2 white package
- Top view LED
- Variety of lens-color
Application:
- Signage and indirect illumination
- Flat lamp
- Indicator and backlight in telecommunication
- Consumer application: dash-board, telephone or A/V equipments
- Flat backlight for LCDs, switches and symbols
- Optical indicators
- Indoor and outdoor displays
- Scanner
- Backlight in LCD, cellular phones, switches, keys, displays
- lluminated advertising, panel
- Lighting device: indicator, general lighting
- Camera flash, hand carrier flash
- Coupling into light guides
- Backlight in LCD, cellular phones, switches, keys, displays
- lluminated advertising, panel
- Lighting device: indicator, general lighting
- Camera flash, hand carrier flash
- Coupling into light guides
Technical specifications
| Abstrahlwinkel | 120 ° | |
| Breite | 1.4 mm | |
| Durchlassspannung | 2.4 V | |
| Durchlassstrom | 20 mA | |
| Farbe der LED | gelb | |
| Gehäuse | 2214 | |
| Länge | 2 mm | |
| Lichtstärke min. | 0.23 cd | |
| Lichtstärke typ. | 0.33 cd | |
| Linse | klar | |
| max. Temperatur | 85 °C | |
| min. Temperatur | -40 °C | |
| Montage | SMD | |
| Wellenlänge | 590 nm |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85414100 |
| MSL | MSL 4 |
| Originalverpackung | Rolle mit 3.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
