156120BS75000 | Würth Elektronik eiSos

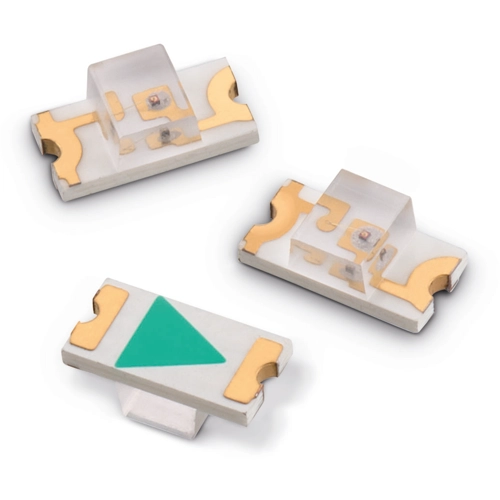

LED, SMD, 3216, blue, 470 nm, 0.018 to 0.05 cd, 140°, 156120BS75000
Unit Price (€ / pc.)
0.3332 € *
Available: 2,000 pcs.
Available in 5 Days: 10,000 pcs.
Leadtime: 14 Weeks **
Total Price:
0.33 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3332 €
50 pcs.
0.2963 €
100 pcs.
0.2356 €
500 pcs.
0.2154 €
2000 pcs.
0.1964 €
*incl. VAT plus shipping costs
**Subject to prior sale
Characteristics
- Compatible with automatic placement equipment
- Ideal for miniature applications
- Connection interface according to industrial standards
- Solder pad to industrial standard
- Low energy
- Slim and miniature size
- To emit light through a small cut-out hole in PCB
- Wide viewing angle
Application:
- Front panels indicators
- LCD backlighting
- Keypad backlighting
- Push button backlighting
- Symbol and switch backlighting
- General LED lighting
- Front panel indicators
- LCD backlighting
- Keypad backlighting
- Push button backlighting
- Symbol and switch backlighting
- General lighting
Technical specifications
| Abstrahlwinkel | 140 ° | |
| Breite | 1.6 mm | |
| Durchlassspannung | 3.8 V | |
| Durchlassstrom | 25 mA | |
| Farbe der LED | blau | |
| Gehäuse | 3216 | |
| Länge | 3.2 mm | |
| Lichtstärke min. | 0.018 cd | |
| Lichtstärke typ. | 0.05 cd | |
| Linse | klar | |
| max. Temperatur | 85 °C | |
| min. Temperatur | -40 °C | |
| Montage | SMD | |
| Wellenlänge | 470 nm |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85414100 |
| MSL | MSL 4 |
| Originalverpackung | Rolle mit 2.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
