156125RS75000 | Würth Elektronik eiSos

LED, SMD, 3212, red, 624 nm, 0.045 to 0.11 cd, 140°, 156125RS75000

Order No.: 67S1137
EAN: 4099889282474
MPN:
156125RS75000
Series: WL-SMRW
Würth Elektronik eiSos

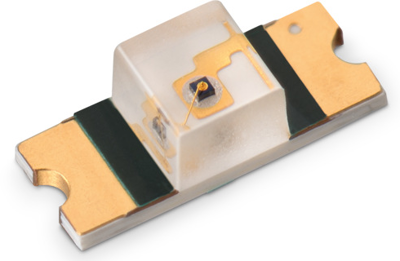

156125RS75000 Würth Elektronik eiSos LEDs
Image may differ
Unit Price (€ / pc.)
0.4105 € *
Available: 3,000 pcs.
Available in 5 Days: 10,000 pcs.
Leadtime: 14 Weeks **
Total Price:
0.41 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4105 €
10 pcs.
0.3808 €
100 pcs.
0.3653 €
500 pcs.
0.3320 €
1000 pcs.
0.3082 €
*incl. VAT plus shipping costs
**Subject to prior sale

Characteristics

  • Compatible with automatic placement equipment
  • Ideal for miniature applications
  • Connection interface according to industrial standards
  • Low energy
  • Slim and miniature size
  • To emit light through a small cut-out hole in PCB
  • Wide viewing angle

Application:

  • Front panels indicators
  • LCD backlighting
  • Keypad backlighting
  • Push button backlighting
  • Symbol and switch backlighting
  • General LED lighting
Technical specifications
Radiation angle 140 °
Width 1.2 mm
On-State Voltage 2.4 V
Forward Current 20 mA
Colour of the LED red
Enclosure 3212
Length 3.2 mm
Light intensity min. 0.045 cd
Light intensity typ. 0.11 cd
Lens clear
max. operating temperature 85 °C
min. operating temperature -40 °C
Assembly SMD
Wavelength 624 nm
Logistics
Country of origin TW
Customs tariff number 85414100
MSL MSL 4
Original Packaging Reel with 3,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
