18012015411H | Würth Elektronik eiSos

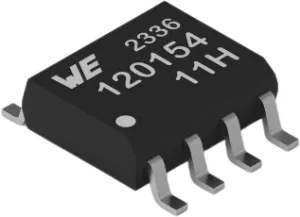

Capacitive Digital Isolator, SOIC-8, Würth Elektronik eiSos 18012015411H
Order No.: 67S0012
EAN: 4099891753108
MPN:
18012015411H
Unit Price (€ / pc.)
2.3253 € *
Available: 50 pcs.
Available in 5 Days: 10,000 pcs.
Leadtime: 14 Weeks **
Total Price:
2.33 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3253 €
10 pcs.
2.1146 €
50 pcs.
1.9028 €
100 pcs.
1.6910 €
500 pcs.
1.5851 €
*incl. VAT plus shipping costs
**Subject to prior sale
2 Digital isolator, 18012015411H, Würth Elektronik eiSos
The 18012015411H is a 2 channel digital isolator that provides capacitive isolation between the primary and secondary sides of the device. The digital isolator requires two supplies, one for the primary side and one for the secondary side.
Features
- Industrial standard package and pin configuration
- Signal transmission in high-speed applications
- High level of immunity to system noise
Applications
- Communication bus isolation
- Motor control
- Battery management systems
- Solar inverters
- Test and measurement systems
- Programmable logic controller (PLC) interfaces
Technical specifications
| Number of channels | 2 | |
| Data transmission rate | 150000000 mb/s | |
| Input voltage | 5.5 V | |
| Enclosure | SOIC-8 | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Product type | Capacitive Digital Isolator | |
| Surge blocking voltage V RMS | 3750 V |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85423919 |
| Original Packaging | Reel with 1 piece |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
