18024015401H | Würth Elektronik eiSos

Digital Isolator, SOIC-16, Würth Elektronik eiSos 18024015401H

Order No.: 67S0022
EAN: 4099891753207
MPN:
18024015401H
Würth Elektronik eiSos
18024015401H Würth Elektronik eiSos Logic Devices

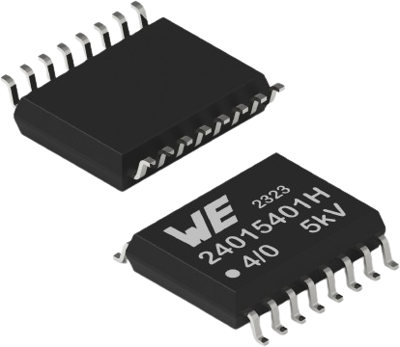

Image may differ
Unit Price (€ / pc.)
11.0408 € *
Available: 50 pcs.
Available in 5 Days: 8,830 pcs.
Leadtime: 14 Weeks **
Total Price:
11.04 € *
Price list
Quantity
Price per unit*
1 pcs.
11.0408 €
10 pcs.
9.9365 €
50 pcs.
9.3843 €
100 pcs.
8.8322 €
500 pcs.
8.2800 €
*incl. VAT plus shipping costs
**Subject to prior sale

4 Channel digital isolator, 18024015401H, Würth Elektronik eiSos

The 18024015401H is a 4 channel digital isolator that includes an integrated isolated DC/DC power module. A single external power supply is necessary to power both the primary side channels and the integrated isolated power supply. The integrated power supply generates the required isolated secondary supply voltage. The integrated power module has integrated protection systems that guard against thermal overstress with thermal shutdown and protect against electrical damage using overcurrent, short-circuit and undervoltage circuitry.

Features

  • Industrial standard package and pin configuration
  • Signal transmission in high-speed applications
  • High level of immunity to system noise

Applications

  • Communication bus isolation
  • Motor control
  • Battery management systems
  • Solar inverters
  • Test and measurement systems
  • Programmable logic controller (PLC) interfaces
Technical specifications
Number of channels 4
Data transmission rate 100000000 mb/s
Input voltage 5.5 V
Enclosure SOIC-16
max. operating temperature 125 °C
min. operating temperature -40 °C
Assembly SMD
Product type Digital Isolator
Surge blocking voltage V RMS 5000 V
Logistics
Country of origin CN
Customs tariff number 85423919
Original Packaging Reel with 1 piece
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
