61201623021 | Würth Elektronik eiSos

Name: IDC connector with strain relief, 16 pole, pitch 2.54 mm, straight, black, 61201623021
Brand: Würth Elektronik eiSos
SKU: 57F1044
Price: 0.88 EUR
Availability: InStock

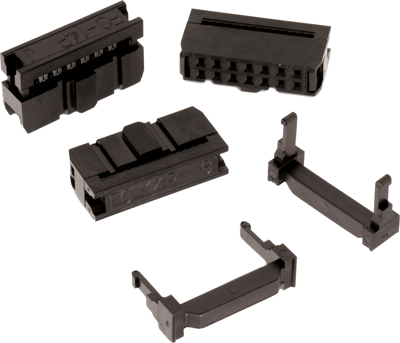

IDC connector with strain relief, 16 pole, pitch 2.54 mm, straight, black, 61201623021

Order No.: 57F1044

EAN: 4099879909374

MPN:

61201623021

Series: WR-BHD IDC

Image may differ

Key Specification:

Ausführung Buchsenleiste

Kontaktart Buchse

Polzahl 16-polig

Rastermaß 2.54 mm

Anschluss Schneidklemmanschluss

Show 13 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.8806 € *

Available: 61 pcs.

Available in 5 Days: 10,000 pcs.

Leadtime: 9 Weeks **

Total Price:

0.88 € *

Price list

Quantity

Price per unit*

1 pcs.

0.8806 €

10 pcs.

0.8568 €

50 pcs.

0.7973 €

100 pcs.

0.7140 €

500 pcs.

0.6307 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	TW
Zolltarifnummer	85366930
MSL	MSL 1
Originalverpackung	Tray mit 66 Stück

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes

Accessory
