61202623021 | Würth Elektronik eiSos

Name: IDC connector with strain relief, 26 pole, pitch 2.54 mm, straight, black, 61202623021
Brand: Würth Elektronik eiSos
SKU: 57F1075
Price: 1.75 EUR
Availability: InStock

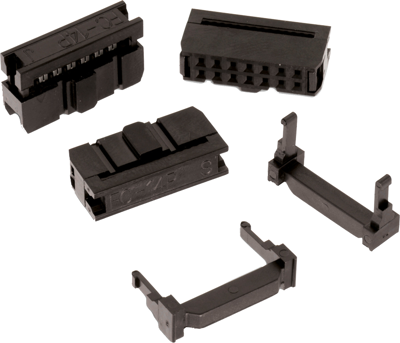

IDC connector with strain relief, 26 pole, pitch 2.54 mm, straight, black, 61202623021

Order No.: 57F1075

EAN: 4099879910028

MPN:

61202623021

Series: WR-BHD IDC

Image may differ

Key Specification:

Version socket header

Contact type socket

Pin number 26 pole

Grid 2.54 mm

Connection IDC connection

Show 13 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

1.7493 € *

Available: 15 pcs.

Available in 5 Days: 10,000 pcs.

Leadtime: 9 Weeks **

Total Price:

1.75 € *

Price list

Quantity

Price per unit*

1 pcs.

1.7493 €

10 pcs.

1.7136 €

100 pcs.

1.5827 €

250 pcs.

1.4161 €

500 pcs.

1.2495 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	TW
Customs tariff number	85366930
MSL	MSL 1
Original Packaging	Tray with 42 pieces

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes

Accessory
