61301621121 | Würth Elektronik eiSos

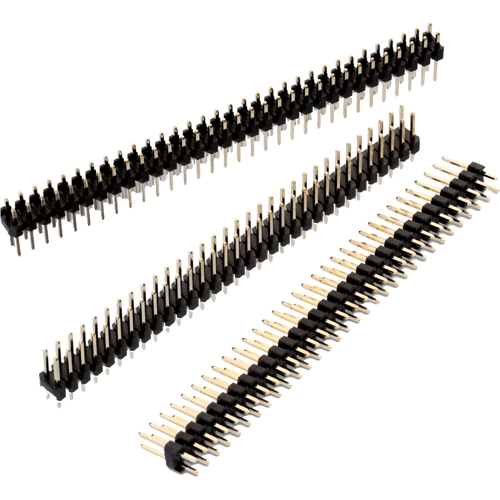

Name: Pin header, 16 pole, pitch 2.54 mm, straight, black, 61301621121
Brand: Würth Elektronik eiSos
SKU: 56F8235
Price: 1.17 EUR
Availability: InStock

Pin header, 16 pole, pitch 2.54 mm, straight, black, 61301621121

Order No.: 56F8235

EAN: 4099879743336

MPN:

61301621121

Series: WR-PHD

Image may differ

Key Specification:

Ausführung Stiftleiste

Kontaktart Stift

Polzahl 16-polig

Rastermaß 2.54 mm

Anschluss Lötstift

Show 8 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

1.1662 € *

Available: 36 pcs.

Available in 5 Days: 10,000 pcs.

Leadtime: 10 Weeks **

Total Price:

1.17 € *

Price list

Quantity

Price per unit*

1 pcs.

1.1662 €

10 pcs.

0.9877 €

25 pcs.

0.8211 €

50 pcs.

0.6902 €

100 pcs.

0.6188 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	TW
Zolltarifnummer	85366930
MSL	MSL 1
Originalverpackung	Beutel mit 1.000 Stück

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes
