870575875006 | Würth Elektronik eiSos

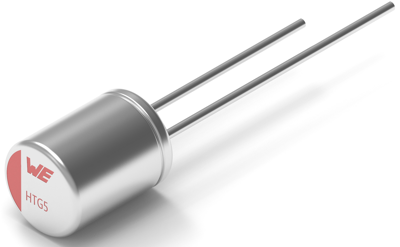

Polymer hybrid aluminum electrolytic capacitor, radial, 56 µF, 63 V, ±20 %, 870575875006
Unit Price (€ / pc.)
2.4990 € *
Available: 50 pcs.
Available in 5 Days: 5,983 pcs.
Leadtime: 30 Weeks **
Total Price:
2.50 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4990 €
50 pcs.
2.0706 €
150 pcs.
1.7731 €
300 pcs.
1.5470 €
600 pcs.
1.3447 €
*incl. VAT plus shipping costs
**Subject to prior sale
Characteristics
- General purpose product series
- High ripple current characteristics
- High stability over the temperature range
- Low ESR
- Low leakage current
- Operating temperature: -55°C to +105°C
Application:
- Industry and telecommunication
- Smoothing
- e.g. Servo inverter, air conditioner, industrial power supply, security camera, base station
Technical specifications
| Bauform | radial | |
| Durchmesser | 10 mm | |
| ESR (Äquivalenter Serienwiderstand) | 22 mΩ | |
| Kapazität | 56 µF | |
| Länge | 12.5 mm | |
| max. Temperatur | 105 °C | |
| min. Temperatur | -55 °C | |
| Nennspannung (DC) | 63 V | |
| Rastermaß | 5 mm | |
| Rippelstrom | 2.4 A | |
| Toleranz | ±20 % |
Download
Logistics
| Zolltarifnummer | 85322500 |
| MSL | MSL 1 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
