870585774003 | Würth Elektronik eiSos

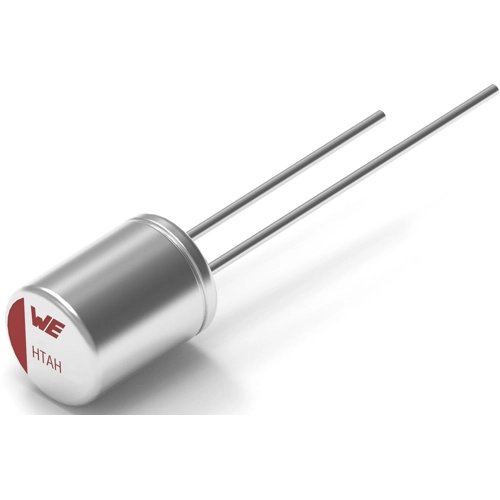

Polymer hybrid aluminum electrolytic capacitor, radial, 47 µF, 50 V, ±20 %, 870585774003
Unit Price (€ / pc.)
2.7132 € *
Available: 50 pcs.
Available in 5 Days: 2,863 pcs.
Leadtime: 30 Weeks **
Total Price:
2.71 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7132 €
50 pcs.
2.2134 €
200 pcs.
1.8683 €
400 pcs.
1.6065 €
800 pcs.
1.3685 €
*incl. VAT plus shipping costs
**Subject to prior sale
Characteristics
- High operating temperature product series
- High ripple current characteristics
- High stability over the temperature range
- Low ESR
- Low leakage current
- Operating temperature: -55°C to +125°C
Application:
- Industry and telecommunication
- Smoothing
- e.g. Servo inverter, air conditioner, industrial power supply, security camera, base station
Technical specifications
| Design | radial | |
| diameter | 8 mm | |
| ESR (Equivalent Series Resistance) | 30 mΩ | |
| Capacity | 47 µF | |
| Length | 11.5 mm | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Rated voltage (DC) | 50 V | |
| Grid | 3.5 mm | |
| Ripple current | 1.52 A | |
| Tolerance | ±20 % |
Download
Logistics
| Customs tariff number | 85322500 |
| MSL | MSL 1 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
