875575559001 | Würth Elektronik eiSos

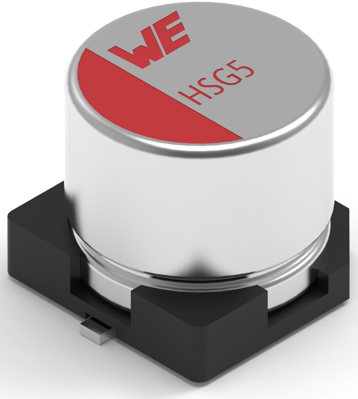

Polymer hybrid aluminum electrolytic capacitor, SMD, 33 µF, 25 V, ±20 %, 875575559001
Unit Price (€ / pc.)
1.3566 € *
Available: 50 pcs.
Available in 5 Days: 8,535 pcs.
Leadtime: 30 Weeks **
Total Price:
1.36 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3566 €
50 pcs.
1.0829 €
250 pcs.
0.8925 €
500 pcs.
0.7497 €
1000 pcs.
0.6188 €
*incl. VAT plus shipping costs
**Subject to prior sale
Characteristics
- Lifespan: 10,000 hours @ +105 °C
- General purpose product series
- High ripple current characteristics
- High stability over the temperature range
- Low ESR
- Low leakage current
- Operating temperature: -55°C to +105°C
Application:
- Industry and telecommunication
- Smoothing
- e.g. Servo inverter, air conditioner, industrial power supply, security camera, base station
Technical specifications
| Bauform | SMD | |
| Durchmesser | 5 mm | |
| ESR (Äquivalenter Serienwiderstand) | 80 mΩ | |
| Kapazität | 33 µF | |
| Länge | 5.8 mm | |
| max. Temperatur | 105 °C | |
| min. Temperatur | -55 °C | |
| Nennspannung (DC) | 25 V | |
| Rippelstrom | 900 mA | |
| Toleranz | ±20 % |
Download
Logistics
| Zolltarifnummer | 85322500 |
| MSL | MSL 1 |
| Originalverpackung | Rolle mit 1.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
