875575957003 | Würth Elektronik eiSos

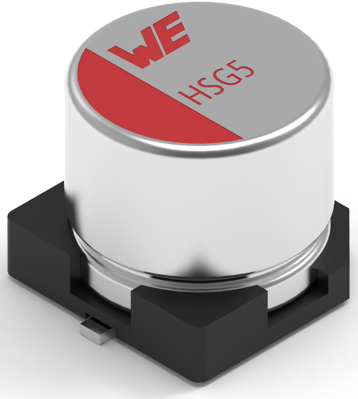

Polymer hybrid aluminum electrolytic capacitor, SMD, 22 µF, 100 V, ±20 %, 875575957003
Unit Price (€ / pc.)
4.0579 € *
Available: 50 pcs.
Available in 5 Days: 604 pcs.
Leadtime: 30 Weeks **
Total Price:
4.06 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0579 €
50 pcs.
3.3320 €
125 pcs.
2.8203 €
250 pcs.
2.4395 €
500 pcs.
2.0825 €
*incl. VAT plus shipping costs
**Subject to prior sale
Characteristics
- Lifespan: 10,000 hours @ +105 °C
- General purpose product series
- High ripple current characteristics
- High stability over the temperature range
- Low ESR
- Low leakage current
- Operating temperature: -55°C to +105°C
Application:
- Industry and telecommunication
- Smoothing
- e.g. Servo inverter, air conditioner, industrial power supply, security camera, base station
Technical specifications
| Design | SMD | |
| diameter | 10 mm | |
| ESR (Equivalent Series Resistance) | 45 mΩ | |
| Capacity | 22 µF | |
| Length | 10.5 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -55 °C | |
| Rated voltage (DC) | 100 V | |
| Ripple current | 1.5 A | |
| Tolerance | ±20 % |
Download
Logistics
| Customs tariff number | 85322500 |
| MSL | MSL 1 |
| Original Packaging | Reel with 500 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
