63913455721 | Würth Elektronik eiSos
Ribbon cable, 34 pole, pitch 0.635 mm, 0.05 mm², AWG 30, PVC, gray/red, 63913455721
Unit Price (€ / mtr.)
6.5331 € *
Available: 0 mtr.
Available in 5 Days: 6 mtr.
Leadtime: 23 Weeks **
Total Price:
6.53 € *
Price list
Quantity
Price per unit*
1 mtr.
6.5331 €
10 mtr.
6.0452 €
76 mtr.
5.3907 €
152 mtr.
4.9028 €
*incl. VAT plus shipping costs
**Subject to prior sale

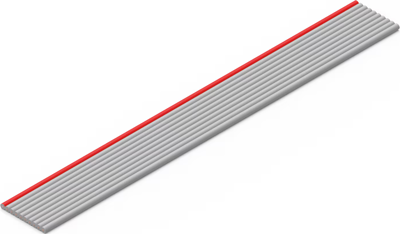

Ribbon flat cable, 63913455721, Würth Elektronik eiSos
WR-CAB 0.635 mm ribbon flat cable made of PVC insulator material, gray with red marking on first conductor.
Technical specifications
| Aderisolationsmaterial | PVC | |
| Anzahl der Adern | 34 | |
| Ausführung | Flachbandleitung | |
| AWG-Leiterquerschnitt | AWG 30 | |
| Breite | 21.59 mm | |
| Farbe | grau/rot | |
| Halogenfrei | No | |
| Leitermaterial | Kupfer, verzinnt | |
| Leiterquerschnitt | 0,05 mm² | |
| Nennspannung | 150 V | |
| Prüfspannung | 1.5 kV | |
| Rastermaß | 0.635 mm | |
| Schirmung | ungeschirmt | |
| Temperaturbereich (unbewegt) | -25 °C bis 105 °C |
Download
Logistics
| Zolltarifnummer | 85444993 |
| Originalverpackung | Rolle mit 76,2 Meter |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
