63914455721 | Würth Elektronik eiSos
Ribbon cable, 44 pole, pitch 0.635 mm, 0.05 mm², AWG 30, PVC, gray/red, 63914455721
Unit Price (€ / mtr.)
8.4014 € *
Available: 0 mtr.
Available in 5 Days: 24 mtr.
Leadtime: 23 Weeks **
Total Price:
8.40 € *
Price list
Quantity
Price per unit*
1 mtr.
8.4014 €
10 mtr.
7.7707 €
76 mtr.
6.9258 €
152 mtr.
6.2951 €
*incl. VAT plus shipping costs
**Subject to prior sale

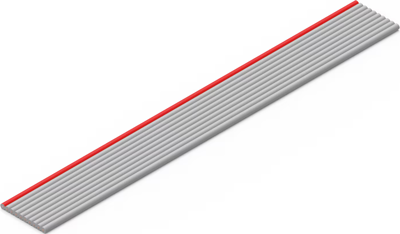

Ribbon flat cable, 63914455721, Würth Elektronik eiSos
WR-CAB 0.635 mm ribbon flat cable made of PVC insulator material, gray with red marking on first conductor.
Technical specifications
| Aderisolationsmaterial | PVC | |
| Anzahl der Adern | 44 | |
| Ausführung | Flachbandleitung | |
| AWG-Leiterquerschnitt | AWG 30 | |
| Breite | 27.94 mm | |
| Farbe | grau/rot | |
| Halogenfrei | No | |
| Leitermaterial | Kupfer, verzinnt | |
| Leiterquerschnitt | 0,05 mm² | |
| Nennspannung | 150 V | |
| Prüfspannung | 1.5 kV | |
| Rastermaß | 0.635 mm | |
| Schirmung | ungeschirmt | |
| Temperaturbereich (unbewegt) | -25 °C bis 105 °C |
Download
Logistics
| Zolltarifnummer | 85444993 |
| Originalverpackung | Rolle mit 76,2 Meter |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
