2511020213301 | Würth Elektronik eiSos

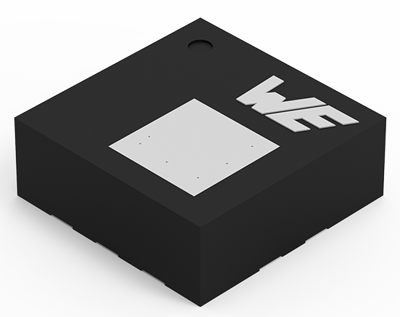

Absolute pressure sensor, 26 to 126 kPa / -40 to 85°C, 1.7-3.6 V, 2511020213301, WFLGA-10, -40 to 85 °C, 2511020213301
Unit Price (€ / pc.)
3.8080 € *
Available: 50 pcs.
Available in 5 Days: 10,000 pcs.
Leadtime: 20 Weeks **
Total Price:
3.81 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8080 €
10 pcs.
3.7247 €
50 pcs.
3.4034 €
100 pcs.
3.0821 €
*incl. VAT plus shipping costs
**Subject to prior sale
Characteristics
- 128 level FIFO buffer
- Application specific interrupt event setting
- Integrated temperature sensor
- Fully calibrated 24 bit pressure output
- I²C, UART and SPI digital communication interface
- MEMS based piezo-resistive sensing principle
- Selectable output data rate up to 200 Hz
- Temperature range: -40 °C to 85 °C
Application:
- Altimeters and barometers
- Weather stations
- GPS navigation enhancement
- Indoor navigation
- White goods
- Wearable devices
Technical specifications
| Version | absolute pressure sensor | |
| Enclosure | WFLGA-10 | |
| max. operating temperature | 85 °C | |
| measurement range | 26 to 126 kPa / -40 to 85°C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Voltage | 1.7-3.6 V |
Download
Logistics
| Country of origin | MT |
| Customs tariff number | 85423911 |
| MSL | MSL 4 |
| Original Packaging | Reel with 1,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
