560112120019 | Würth Elektronik eiSos

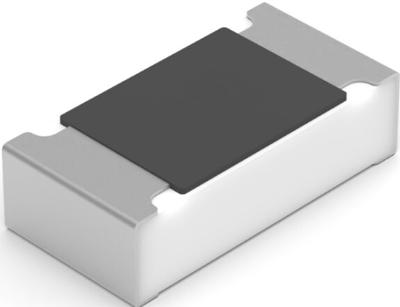

Resistor, thick film, SMD 0805 (2012), 5.1 kΩ, 0.25 W, ±1 %, 560112120019
Unit Price (€ / pc.)
0.1476 € *
Available: 500 pcs.
Available in 5 Days: 10,000 pcs.
Leadtime: 24 Weeks **
Total Price:
0.15 € *
Price list
Quantity
Price per unit*
1 pcs.
0.1476 €
50 pcs.
0.0833 €
500 pcs.
0.0559 €
2500 pcs.
0.0428 €
5000 pcs.
0.0333 €
*incl. VAT plus shipping costs
**Subject to prior sale
Resistor, 560112120019, WÜRTH
WRIS-RSKS thick film anti-sulfur general purpose.
Technical specifications
| ohmscher Widerstand | 5.1 kΩ | |
| Bauform | SMD 0805 (2012) | |
| Breite | 1.25 mm | |
| Höhe | 0.5 mm | |
| Länge | 2 mm | |
| Leistung | 0.25 W | |
| max. Temperatur | 155 °C | |
| min. Temperatur | -55 °C | |
| Toleranz | ±1 % | |
| Technologie | Dickschicht | |
| Temperaturkoeffizient | -100/+100 ppm/C |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85332100 |
| MSL | MSL 1 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Bleimonoxid [Blei(II)oxid] |
