824011 | Würth Elektronik eiSos

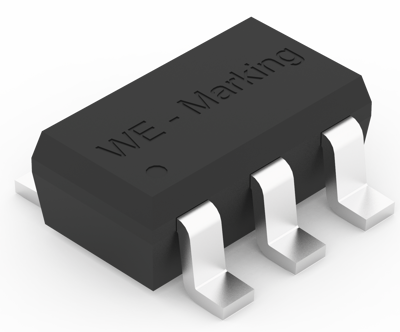

SMD TVS diode array, unidirectional, 5 V, SOT-753, Würth Elektronik eiSos 824011

Order No.: 26S9365
EAN: 4099879723703
MPN:
824011
Series: WE-TVS High Speed
Würth Elektronik eiSos
824011 Würth Elektronik eiSos TVS Diodes
Image may differ
Print
Key Specification:
Rated blocking voltage 5 V
Breakdown voltage 6.1 V
Continuous power loss 8.5 W
Show 9 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.9996 € *
Available: 50 pcs.
Available in 5 Days: 10,000 pcs.
Leadtime: 12 Weeks **
Total Price:
1.00 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9996 €
10 pcs.
0.9520 €
50 pcs.
0.8925 €
100 pcs.
0.8211 €
500 pcs.
0.7259 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

Characteristics

  • Epoxy flame resistant UL94 V-0
  • Simple Design
  • Low clamping voltage
  • Rail to Rail protection
  • RoHS, REACH and free of halogens
  • Sturdy design
  • Very low capacitance

Application:

  • Very fast data lines
  • USB 2.0
  • Ethernet
  • PoE
  • VGA
  • Sim Cards
  • Keypads
Technical specifications
Version Unidirectional
Continuous power loss 8.5 W
Breakdown voltage 6.1 V
Enclosure SOT-753
max. operating temperature 125 °C
min. operating temperature -55 °C
Assembly SMD
Rated blocking voltage 5 V
Show similar products 0
Logistics
Country of origin CN
Customs tariff number 85411000
MSL MSL 4
Original Packaging Reel with 3,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
