82401646 | Würth Elektronik eiSos

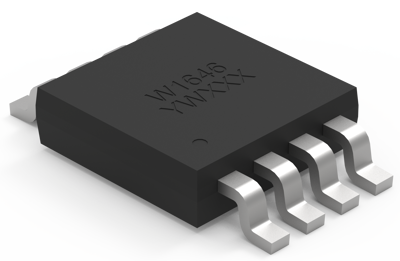

SMD TVS diode array, unidirectional, 5 V, MSOP-8, Würth Elektronik eiSos 82401646
Unit Price (€ / pc.)
2.2848 € *
Available: 50 pcs.
Available in 5 Days: 10,000 pcs.
Leadtime: 12 Weeks **
Total Price:
2.28 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2848 €
10 pcs.
2.1777 €
50 pcs.
2.0349 €
100 pcs.
1.8921 €
500 pcs.
1.6779 €
*incl. VAT plus shipping costs
**Subject to prior sale
Characteristics
- Epoxy flame resistant UL94 V-0
- Fast turn-on
- Low clamping voltage
- Rail to Rail protection
- Slim and miniature size
- Very low capacitance
Application:
- Super Speed data lines
- HDMI 1.3/1.4/2.0, DVI
- DisplayPort
- USB 3.1 Gen 1 (5Gb/s)
- SATA and eSATA
- GBit LAN
- Thunderbolt
- LVDS
- ESD protection in accordance with EN 61000-4-2
– 8 kV contact discharge
– 15 kV air discharge
Technical specifications
| Ausführung | Unidirektional | |
| Dauerverlustleistung | 13 W | |
| Durchbruchspannung | 6 V | |
| Gehäuse | MSOP-8 | |
| max. Temperatur | 85 °C | |
| min. Temperatur | -55 °C | |
| Montage | SMD | |
| Sperrspannung | 5 V |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85411000 |
| MSL | MSL 4 |
| Originalverpackung | Rolle mit 3.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
