82402375 | Würth Elektronik eiSos

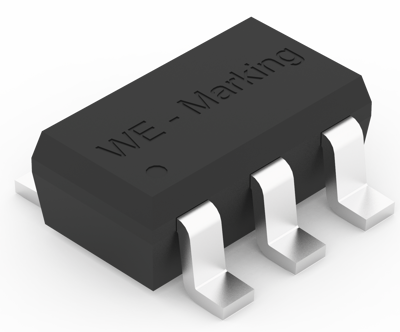

SMD TVS diode array, unidirectional, 5 V, SC-70-6, Würth Elektronik eiSos 82402375
Unit Price (€ / pc.)
0.9520 € *
Available: 50 pcs.
Available in 5 Days: 10,000 pcs.
Leadtime: 12 Weeks **
Total Price:
0.95 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9520 €
10 pcs.
0.9163 €
50 pcs.
0.8449 €
100 pcs.
0.7854 €
500 pcs.
0.7021 €
*incl. VAT plus shipping costs
**Subject to prior sale
Characteristics
- Epoxy flame resistant UL94 V-0
- Fast turn-on
- High ESD withstand voltage
- Low clamping voltage
- Slim and miniature size
- Uni- or bidirectional protection
Application:
- DC power supply
- USB Power Delivery (PD)
- Headsets and accessories
- PDAs
- Digital cameras
- MP3-Player
- Touch Panels
- Notebooks
- ESD, EFT and Surge Protection
- ESD protection in accordance with EN 61000-4-2
– 8 kV contact discharge
– 15 kV air discharge
Technical specifications
| Ausführung | Unidirektional | |
| Dauerverlustleistung | 6.8 W | |
| Durchbruchspannung | 6 V | |
| Gehäuse | SC-70-6 | |
| Kapazität | 13 pF | |
| max. Temperatur | 85 °C | |
| min. Temperatur | -55 °C | |
| Montage | SMD | |
| Sperrspannung | 5 V |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85411000 |
| MSL | MSL 4 |
| Originalverpackung | Rolle mit 3.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
