RC1206FR-0762RL | Yageo
Resistor, thick film, SMD 1206 (3216), 62 Ω, 0.25 W, ±1 %, RC1206FR-0762RL
Unit Price (€ / pc.)
0.0714 € *
Available: 5,020 pcs.
Available in 4 Days: 5,000 pcs.
Leadtime: 13 Weeks **
Total Price:
0.07 € *
Price list
Quantity
Price per unit*
1 pcs.
0.0714 €
10 pcs.
0.0536 €
100 pcs.
0.0440 €
500 pcs.
0.0214 €
2500 pcs.
0.0143 €
10000 pcs.
0.0117 €
20000 pcs.
0.0099 €
*incl. VAT plus shipping costs
**Subject to prior sale
SMD-Thick film resistor, RC1206FR07-62R, Phycomp
Features
- Halogen Free Epoxy
- RoHS compliant
- Reducing environmentally hazardous wastes
- High component and equipment reliability
- Saving of PCB space

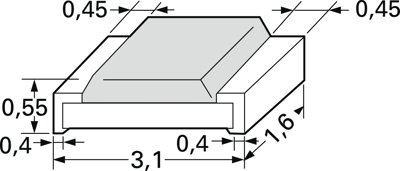

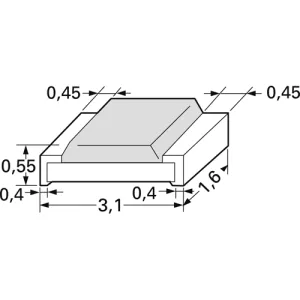

Technical specifications
| ohmscher Widerstand | 62 Ω | |
| Bauform | SMD 1206 (3216) | |
| Breite | 1.6 mm | |
| Höhe | 0.55 mm | |
| Länge | 3.1 mm | |
| Leistung | 0.25 W | |
| max. Temperatur | 155 °C | |
| min. Temperatur | -55 °C | |
| Toleranz | ±1 % | |
| Technologie | Dickschicht | |
| Temperaturkoeffizient | ±100 ppm/K |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85332100 |
| Originalverpackung | Rolle mit 5.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
