RC2512JK-072K7L | Yageo
Resistor, thick film, SMD 2512 (6330), 2.7 kΩ, 1 W, ±5 %, RC2512JK-072K7L
Unit Price (€ / pc.)
0.0809 € *
Available: 1,589 pcs.
Available in 4 Days: 4,000 pcs.
Leadtime: 13 Weeks **
Total Price:
0.08 € *
Price list
Quantity
Price per unit*
1 pcs.
0.0809 €
10 pcs.
0.0583 €
100 pcs.
0.0500 €
500 pcs.
0.0428 €
1000 pcs.
0.0393 €
4000 pcs.
0.0345 €
*incl. VAT plus shipping costs
**Subject to prior sale
SMD thick-film resistors, size 2512, 1.0 W, tolerance 5.0 %, type Yageo/Phycomp RC2512.
Technical specifications
| ohmic resistance | 2.7 kΩ | |

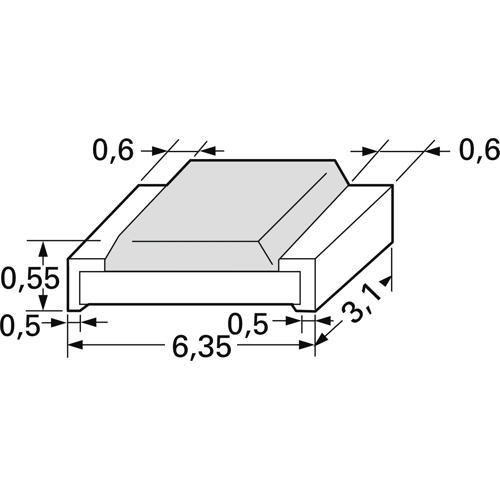

| Design | SMD 2512 (6330) | |
| Width | 3 mm | |
| Height | 0.55 mm | |
| Length | 6.35 mm | |
| Power | 1 W | |
| max. operating temperature | 155 °C | |
| min. operating temperature | -55 °C | |
| Tolerance | ±5 % | |
| Technology | thick film | |
| Temperature coefficient | ±100 ppm/K |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85332100 |
| Original Packaging | Reel with 4,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
