CFR-25JT-52-10R | Yageo

Name: Carbon Film Resistor, 10 Ω, 0.25 W, ±5 %, CFR-25JT-52-10R
Brand: Yageo
SKU: 17E100
Price: 0.03 EUR
Availability: InStock

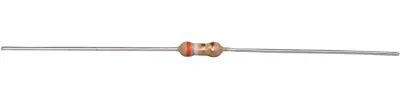

Carbon Film Resistor, 10 Ω, 0.25 W, ±5 %, CFR-25JT-52-10R

Order No.: 17E100

EAN: 4099879671127

MPN:

CFR-25JT-52-10R

Series: CFR

Image may differ

Key Specification:

ohmic resistance 10 Ω

Tolerance ±5 %

Power 0.25 W

Design axial

Assembly THT

Show 81 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.0262 € *

Available: 7,100 pcs.

Available in 4 Days: 205,000 pcs.

Leadtime: 26 Weeks **

Total Price:

2.62 € *

Price list

Quantity

Price per unit*

100 pcs.

0.0262 €

300 pcs.

0.0155 €

1000 pcs.

0.0119 €

3000 pcs.

0.0099 €

10000 pcs.

0.0086 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Carbon film resistors, 0.25 W, tolerance 5.0 %, type Yageo CFR-25 0207.

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	CN
Customs tariff number	85332100
Original Packaging	Reel with 5,000 pieces

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes

1 item in 81 variations
