CT09-15P | YAMAICHI

D-Sub plug, 15 pole, high density, equipped, straight, solder cup, CT09-15P

Order No.: 55F6300
EAN: 4099889807714
MPN:
CT09-15P
Series: CT

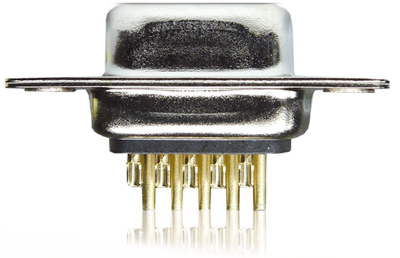

CT09-15P YAMAICHI D-Sub Connectors
Image may differ
Unit Price (€ / pc.)
1.2971 € *
Available: 0 pcs.
Next delivery: 782 pcs. on 2025-05-06
Leadtime: 11 Weeks **
Total Price:
1.30 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2971 €
100 pcs.
1.1900 €
500 pcs.
1.0710 €
*incl. VAT plus shipping costs
**Subject to prior sale

Straight Sub-D connector with male contacts, series HD, type Yamaichi CT.

With solder terminals and punched contacts; Contact material: copper alloy over Ni gold-plated. Insulator: Polyester, glass fiber-reinforced, self-extinguishing to UL 94 V-0. Insulation resistance: min. 5.0 Gohm. Contact resistance: max. 10 mohm. Test voltage: 1000 VAC. Operating current: 5.0 A. Operating temperatures: –55 to +105 °C. Dimensions: E 9.6 mm (13.3 mm with 78-pole), F 12.5 mm (15.4 mm with 78-pole), G 10.7 mm (13.6 mm with 78-pole). Operating temperatures: –55 to +105 °C.

Technical attributes (type, number of poles, dimensions A, B, C, D in mm): CT09-15P, 15-pole, A 30.8, B 25, C 17.7, D 19.3 mm

Technical specifications
Version Stiftleiste
Attachment (rear panel) Durchgangsloch
Additional parts bestückt
Contact connection Lötkelch
Assembly gerade
Pole image High density
Pin number 15-polig
Type of locking Durchgangsloch
Logistics
Country of origin TW
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
