CT25-44P | YAMAICHI

D-Sub plug, 44 pole, high density, equipped, straight, solder cup, CT25-44P

Order No.: 55F6304
EAN: 4099889807738
MPN:
CT25-44P
Series: CT
YAMAICHI

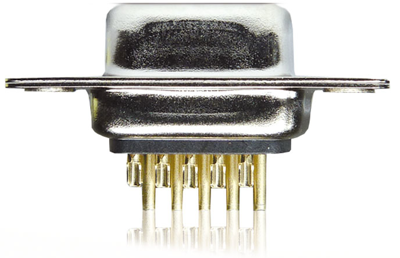

CT25-44P YAMAICHI D-Sub Connectors Image 1
CT25-44P YAMAICHI D-Sub Connectors Image 2
Image may differ
Unit Price (€ / pc.)
1.6541 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1.65 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1000 pcs.
1.6541 €

Straight Sub-D connector with male contacts, series HD, type Yamaichi CT.

With solder terminals and punched contacts; Contact material: copper alloy over Ni gold-plated. Insulator: Polyester, glass fiber-reinforced, self-extinguishing to UL 94 V-0. Insulation resistance: min. 5.0 Gohm. Contact resistance: max. 10 mohm. Test voltage: 1000 VAC. Operating current: 5.0 A. Operating temperatures: –55 to +105 °C. Dimensions: E 9.6 mm (13.3 mm with 78-pole), F 12.5 mm (15.4 mm with 78-pole), G 10.7 mm (13.6 mm with 78-pole). Operating temperatures: –55 to +105 °C.

Technical attributes (type, number of poles, dimensions A, B, C, D in mm): CT25-44P, 44-pole, A 53, B 47, C 40.2, D 41.3 mm

Technical specifications
Version pin header
Attachment (rear panel) through hole
Additional parts equipped
Contact connection solder cup
Assembly straight
Pole image high density
Pin number 44 pole
Type of locking through hole
Logistics
Country of origin TW
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
