Y-CONCABLE-3 | YAMAICHI

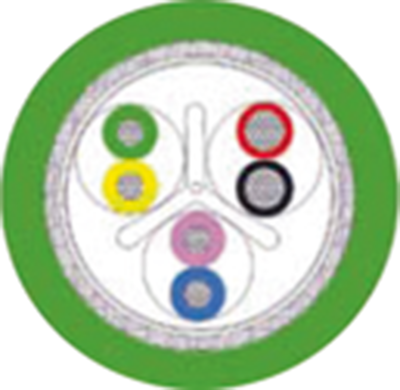

PUR ethernet cable, Cat 5, 6-wire, 0.14 mm² + 0.34 mm², AWG 26 + AWG 22, green, Y-CONCABLE-3
Unit Price (€ / mtr.)
6.9734 € *
Available: 364 mtr.
Leadtime: 9 Weeks **
Total Price:
6.97 € *
Price list
Quantity
Price per unit*
1 mtr.
6.9734 €
10 mtr.
6.3903 €
100 mtr.
5.9024 €
*incl. VAT plus shipping costs
**Subject to prior sale
Ethernet hybrid data cables Cat. 5, type YAMAICHI Y-ConCable-3.
Industrial design, halogen-free and silicon-free, 4 x data and 2 x power supply, for use with Y-Con series connectors, suited for use with cable carrier systems
Technical specifications
| Anzahl der Adern | 6 | |
| Ausführung | Ethernet-Kabel | |
| Außendurchmesser | 6.8 mm | |
| AWG-Leiterquerschnitt | AWG 26 + AWG 22 | |
| Farbe | grün | |
| Halogenfrei | Yes | |
| Kategorie | Cat 5 | |
| Leiterquerschnitt | 0,14 mm² + 0,34 mm² | |
| Material | PUR | |
| Temperaturbereich (unbewegt) | -20 °C bis 80 °C |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444993 |
| Originalverpackung | Ring mit 100 Meter |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
