F69-65A | ZF Switches and Sensors

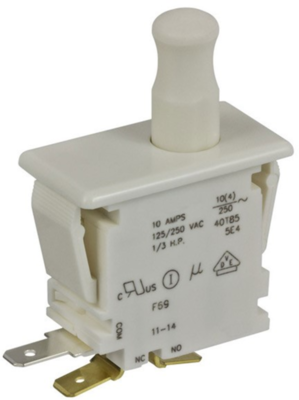

Pushbutton switch, 1 pole, natural, unlit , 10 A/250 V, F69-65A
Unit Price (€ / pc.)
6.7830 € *
Available: 78 pcs.
Leadtime: 7 Weeks **
Total Price:
6.78 € *
Price list
Quantity
Price per unit*
1 pcs.
6.7830 €
10 pcs.
5.9500 €
100 pcs.
5.2479 €
*incl. VAT plus shipping costs
**Subject to prior sale
Pushbutton switches, latching with pulled button, type Cherry F69-65A.
With single-pole CO as door switch, test function switch and start switch for mechanical and manual actuation; Snap-in front-panel mounting: panel thickness 1.1 to 2.5 mm. Breaking capacity: 10 A/250 VAC. 4.8 x 0.5 mm (CuZn) tab terminals. Case material: PBT to UL 94 V-0. Actuator: POM. Contacts: AgCdO. Connections: CuZn. Leakage current resistance: PTI 175. Ambient temperatures: - 40 to +85 °C. Switching functions: momentary on (M), momentary and permanently on, latching with pulled button. Contact gap: max. 3.0 mm. Actuating force: 285 to 475 cN. Degree of protection: IP 40. Test logo: VDE, UL, CSA.
Type: F69-65A
Technical specifications
| Connection | quick connection | |
| Design | plunger | |
| Printed | No | |
| illuminated | No | |
| Actuator colour | natural | |
| contact surface | silver-plated | |
| Pin number | 1 pole | |
| Latching switching function | latching | |
| Breaking capacity | 10 A/250 V |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
