KFB3ANA1BBB | ZF Switches and Sensors

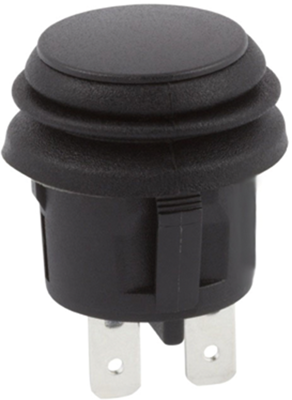

Pushbutton switch, 2 pole, black, unlit , 6 A/125 V, mounting Ø 20 mm, IP65, KFB3ANA1BBB
Unit Price (€ / pc.)
3.4748 € *
Available: 0 pcs.
Leadtime: On Request **
Pushbutton switch, type Cherry KFB.
Breaking power: 10 A 125 VAC, 6,0 A 250 VAC. Switching function: ON-OFF. Dielectric strength: 1500 VAC. Contact resistance: max. 0.05 ohm. Termination: 4.8 mm push-in terminals. Degree of protection: IP 65. Certifications: VDE, UL. Ambient temperatures: max. +85 °C.
Double-pole.
Type: KFB3ANA1BBB, black, not illuminated
Technical specifications
| Connection | plug-in connection | |
| Design | round | |
| Printed | No | |
| illuminated | No | |
| Installation diameter | 20 mm | |
| Actuator colour | black | |
| contact surface | silver-plated | |
| Pin number | 2 pole | |
| Latching switching function | latching | |
| Breaking capacity | 6 A/125 V | |
| Protection class | IP65 | |
| Vandal-proof | No |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
