KRE2ANA1BBD | ZF Switches and Sensors

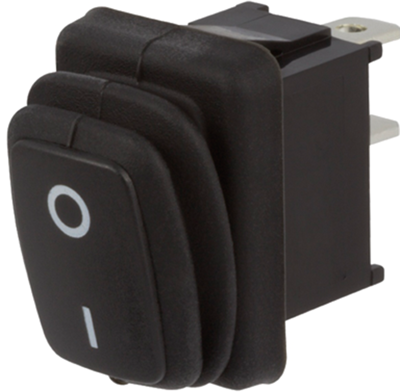

Rocker switch, black, 1 pole, On-Off, off switch, 16 A/125 VAC, 10 A/250 VAC, IP65, unlit, printed, KRE2ANA1BBD
Unit Price (€ / pc.)
2.5228 € *
Available: 0 pcs.
Available in 5 Days: 1,000 pcs.
Leadtime: 18 Weeks **
Rocker switches, type Cherry KRE.
Single-pole; Breaking power: 16 A 125 VAC, 10 A 250 VAC. Dielectric strength: 1500 VAC. Contact resistance: max. 0.05 ohm. Termination: 4.8 mm push-in connection. Degree of protection: IP 65. Certifications: UL. Ambient temperatures: max. +85 °C.
With 0/- labeling.
Technical attributes (type,switching function, color, version): KRE2ANA1BBD, ON-OFF, black, not illuminated
Technical specifications
| Connection | Steckanschluss | |
| Design | rund | |
| Printed | Yes | |
| illuminated | No | |
| Installation diameter | 23 mm | |
| Actuator colour | schwarz | |
| contact surface | versilbert | |
| Pin number | 1-polig | |
| Latching switching function | Ausschalter | |
| Breaking capacity | 16 A/125 VAC, 10 A/250 VAC | |
| Shift position | Ein-Aus | |
| Protection class | IP65 | |
| Wall thickness | 0,75 bis 2,5 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
