WRG32F2BBREN | ZF Switches and Sensors
Rocker switch, red, 2 pole, On-Off, off switch, 16 (4) A/250 VAC, illuminated, unprinted, WRG32F2BBREN
Unit Price (€ / pc.)
2.0468 € *
Available: 109 pcs.
Leadtime: On Request **
Total Price:
2.05 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0468 €
25 pcs.
1.7374 €
100 pcs.
1.6065 €
*incl. VAT plus shipping costs
**Subject to prior sale

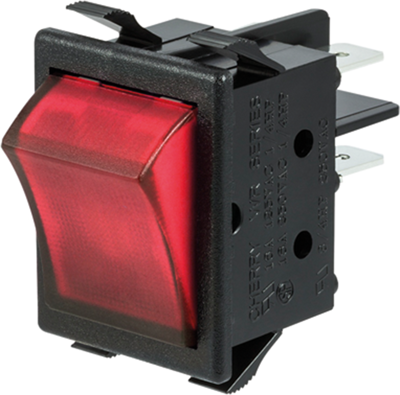

Rocker switches, type Cherry WRG.
Double-pole, for higher loads; Breaking power: 16 (4) A 125/250 VAC. Switching function: ON-OFF. Dielectric strength: 1000 VAC. Contact resistance: max. 0.02 ohm. Termination: 6.3 mm push-in connection. Certifications: VDE, UL. Ambient temperatures: –20 to +125 °C.
Technical attributes (type, color, version): WRG32F2BBREN, red, illuminated
Technical specifications
| Connection | plug-in connection | |
| Design | rectangular | |
| Printed | No | |
| illuminated | Yes | |
| Actuator colour | red | |
| contact surface | silver-plated | |
| min. Geräteausschnitt | 30.5 x 22 mm | |
| Pin number | 2 pole | |
| Latching switching function | off switch | |
| Breaking capacity | 16 (4) A/250 VAC | |
| Shift position | On-Off | |
| Wall thickness | 0.75 to 1.25 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
