D413-V3AA | ZF Switches and Sensors

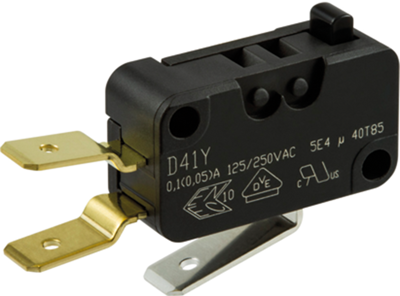

Miniature snap-action switche, On-On, plug-in connection, pin plunger, 1.7 N, 0.1 (0.5) A/250 VAC, D413-V3AA
Unit Price (€ / pc.)
1.3566 € *
Available: 0 pcs.
Next delivery: 500 pcs. on 2025-03-30
Leadtime: 2 Weeks **
Miniature snap-action switches, type Cherry D413.
Switching function: CO. Breaking power: 0.1 (0.5) A/250 VAC (EN 61058), 0.1 A 125/250 VAC (UL 1054). Contacts: AuAgPt (Crosspoint). Leakage current resistance: PTI 300. Operating temperatures: –40 to + 85 °C. Terminals: CuZn. Electrical useful life: 50,000 switching cycles. Certifications: ENEC, UL, CSA. .
Without auxiliary actuator, type D413-V3AA.
Switch actuating force: 170 cN. Action point: 14.7 mm (±0.3). Pretravel: maximum 1.2 mm. Overtravel: minimum 1.3 mm. Travel difference: maximum 0.3 mm. Home position: maximum 16.2 mm.
Technical attributes (type, termination): D413-V3AA, 6.3 x 0.8 PCB terminals
Technical specifications
| Connection | plug-in connection | |
| Design | angled | |
| Actuator | pin plunger | |
| actuating force | 1.7 N | |
| Shell Material | PET | |
| Latching switching function | On-On | |
| Breaking capacity | 0.1 (0.5) A/250 VAC | |
| Switching point | 14.7 mm ±0.3 mm |
Download
Logistics
| Country of origin | UA |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
