D413-V3RD | ZF Switches and Sensors

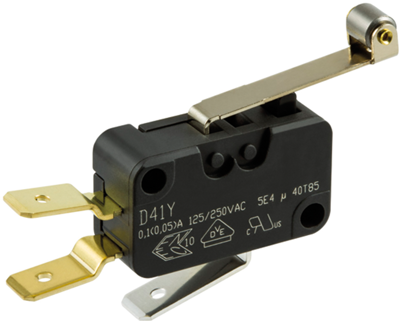

Miniature snap-action switche, On-On, plug-in connection, roller lever, 0.86 N, 0.1 (0.5) A/250 VAC, D413-V3RD
Unit Price (€ / pc.)
2.5466 € *
Available: 669 pcs.
Leadtime: On Request **
Total Price:
63.67 € *
Price list
Quantity
Price per unit*
25 pcs.
2.5466 €
100 pcs.
2.3443 €
250 pcs.
2.2253 €
*incl. VAT plus shipping costs
**Subject to prior sale
Miniature snap-action switches, type Cherry D413.
Switching function: CO. Breaking power: 0.1 (0.5) A/250 VAC (EN 61058), 0.1 A 125/250 VAC (UL 1054). Contacts: AuAgPt (Crosspoint). Leakage current resistance: PTI 300. Operating temperatures: –40 to + 85 °C. Terminals: CuZn. Electrical useful life: 50,000 switching cycles. Certifications: ENEC, UL, CSA. .
With 34.1 mm auxiliary roll actuator.
Switch actuating force: 86 cN. Action point: 20.5 mm (±1.1). Pretravel: maximum 3.2 mm. Overtravel: minimum 2.2 mm. Travel difference: maximum 0.8 mm. Home position: maximum 24.8 mm.
Technical attributes (type, termination): D413-V3RD, 6.3 x 0.8 PCB terminals
Technical specifications
| Connection | plug-in connection | |
| Design | angled | |
| Actuator | roller lever | |
| actuating force | 0.86 N | |
| Shell Material | PET | |
| Latching switching function | On-On | |
| Breaking capacity | 0.1 (0.5) A/250 VAC | |
| Switching point | 20.5 mm ±1.1 mm |
Download
Logistics
| Country of origin | UA |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
