D459-V3LD | ZF Switches and Sensors

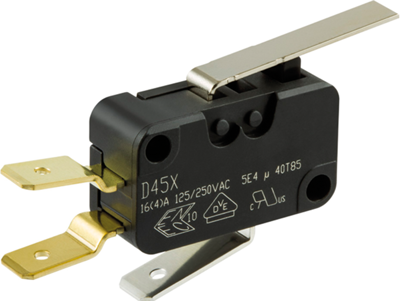

Miniature snap-action switche, On-On, plug-in connection, hinge lever, 0.5 N, 16 (4) A/250 VAC, 10 (3) A/400 VAC, IP40, D459-V3LD
Unit Price (€ / pc.)
1.6898 € *
Available: 214 pcs.
Available in 5 Days: 2,544 pcs.
Leadtime: 22 Weeks **
Miniature snap-action switches, type Cherry D459.
Switching function: CO. Breaking power: 16 (4) A/250 VAC, 10 (3) 400 VAC (EN 61058), 15 A 125/250 VAC (UL 1054). Contacts: AgNi. Leakage current resistance: PTI 300. Operating temperatures: –40 to + +85 °C. Terminals: CuZn. Electrical useful life: 50,000 switching cycles. Certifications: ENEC, UL, CSA.
With flat auxiliary actuator, 35.6 mm length.
Switch actuating force: 50 cN. Action point: 15.2 mm (±1.2). Pretravel: maximum 3.2 mm. Overtravel: minimum 2.2 mm. Travel difference: maximum 0.8 mm. Home position: maximum 19.8 mm.
Technical attributes (type, termination): D459-V3LD, 6.3 x 0.8 PCB terminals
Technical specifications
| Connection | Steckanschluss | |
| Actuator | Scharnierhebel | |
| actuating force | 0,5 N | |
| Shell Material | PET | |
| Latching switching function | Ein-Ein | |
| Breaking capacity | 16 (4) A/250 VAC, 10 (3) A/400 VAC | |
| Switching point | 15,2 mm ±1,2 mm | |
| Protection class | IP40 |
Download
Logistics
| Country of origin | UA |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
